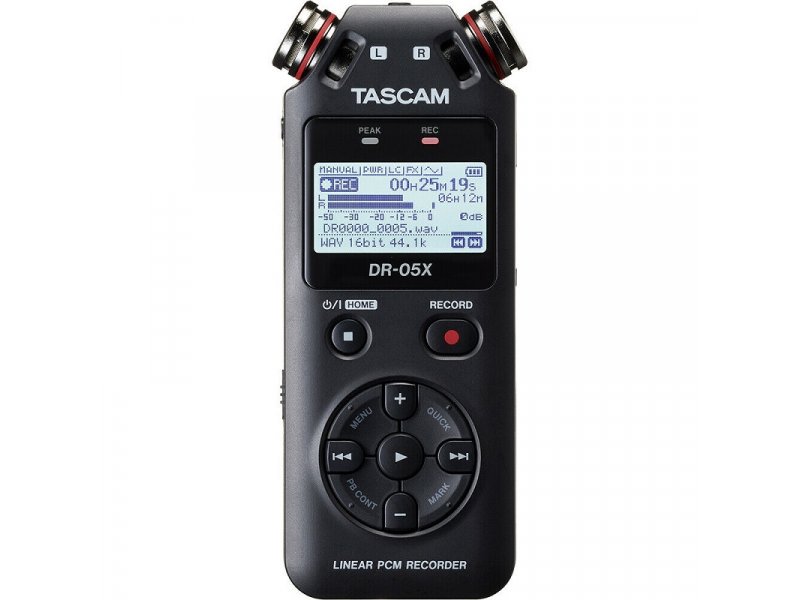

TASCAM DR-05X

(0)

SKU:59487

Proizvod trenutno nije dostupan

Pomoć u kući sa 88% popusta

Specifikacija:

Recording Media	microSD card (64MB to 3GB), microSDHC card (4GB to 32GB), microSDXC card (up to 128GB)
File System	FAT16/32, exFAT
Recording File Format
WAV / BWF
Sampling Frequency	44.1k / 48k / 96k Hz
Bit-depth	16 / 24-bit
MP3
Sampling Frequency	44.1k / 48k Hz
Recording Bit-rate	32k / 64k / 96k / 128k / 192k / 256k / 320k bps
Playback Bit-rate	32k to 320k bps, VBR, ID3TAG Ver. 2.4
Number of Channels	2-channel (Stereo) / 1-channel (Mono)
Playback speed control	0.5 to 1.5 times (in 0.1 increments) * 44.1k/48kHz only
Built-in Microphone	Omnidirectional, Stereo
MIC/EXT IN
Connector	1/8" (3.5mm) Stereo Mini jack (Unbalanced, Plug-in Power)
Nominal Input Level	–20dBV
Maximum Input Level	–4dBV
Input Impedance	18kΩ or more (PLUG IN PWR: OFF) 2kΩ or more (PLUG IN PWR: ON)
PHONES/LINE OUT
Connector	1/8" (3.5mm) Stereo Mini jack (Unbalanced)
for LINE connection
Nominal Output Level	–14dBV (10kΩ load)
Maximum Output Level	+2dBV (10kΩ load)
Output Impedance	12Ω
for Headphones connection
Maximum Output Power	20mW + 20mW (32Ω load)
USB
Connector	USB Micro B-type
Format	USB2.0 HIGH SPEED
Built-in Speaker	0.3W, Mono
Low-cut Filter	40 / 80 / 120Hz
Chromatic Tuner	C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments)
Effector	6 presets (Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2)
Tripod attachment screw-hole	1/4" Tripod attachment screw-hole
Power	2 AA Batteries, USB bus power, AC 100 to 240V (optional AC Adapter)
Power Consumption	1.7 W (Max)
Battery Operation Time (Recording)
Alkaline (EVOLTA)	approx. 17.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
Ni-MH (eneloop)	approx. 15.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
Dimensions (W×H×D)	2.4" × 5.55" × 1.02" / 61 × 141 × 26 mm
Weight	4.1 oz. / 116 g

Audio Performanse

Frequency Response
Fs 44.1kHz	20Hz to 20kHz, +1/–3dB (EXT IN to LINE OUT, JEITA)
Fs 48kHz	20Hz to 22kHz, +1/–3dB (EXT IN to LINE OUT, JEITA)
Fs 96kHz	20Hz to 40kHz, +1/–3dB (EXT IN to LINE OUT, JEITA)
Total Harmonic Distortion	0.05% or less (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA)
Signal-to-Noise Ratio	92 dB or higher (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA)

Neophodne performanse kompjutera

Windows
Computer	Windows PC with USB2.0 or USB3.0 port
CPU	Dual Core, 2GHz or faster (x86)
Memory	2GB or more
Macintosh
CPU	Power PC, iMac, G3, G4, G5 266MHz or faster
Memory	64MB or more
USB	USB2.0 recommended

Podržani operativni sistemi

Windows

Windows 10 (April 2018 Update) , Windows 8.1 , Windows 7

Mac

macOS Mojave New , macOS High Sierra (10.13) , macOS Sierra‎ (10.12)

iOS

iOS 12 New , iOS 11

*1: The performance of the media may be degraded significantly if it will be used repeatedly. ERASE FORMAT by DR-05X is recommended before use.

Podržana memorija

microSD card
Maker	Series	Model	Capacity
Panasonic	Premium microSDHC™ UHS-I Memory Card (Class6) R:45MB/s	RP-SMGA04GJK	4GB
Panasonic	Premium microSDHC™ UHS-I Memory Card (Class6) R:45MB/s	RP-SMGA08GJK	8GB
Panasonic	Premium microSDHC™ UHS-I Memory Card (Class6) R:45MB/s	RP-SMGA16GJK	16GB
Panasonic	Premium microSDHC™ UHS-I Memory Card (Class6) R:45MB/s	RP-SMGA32GJK	32GB
SanDisk	SanDisk Extreme PRO® microSDHC™ UHS-I Memory Card (U3, Class10)	SDSDQXP-016G-J35A	16GB
SanDisk	SanDisk Extreme PRO® microSDHC™ UHS-I Memory Card (U3, Class10)	SDSDQXP-032G-J35A	32GB
SanDisk	SanDisk Extreme PRO® microSDHC™ UHS-I Memory Card (U3, Class10)	SDSDQXP-064G-J35A*1 New	64GB
SanDisk	SanDisk Extreme® microSDHC™ UHS-I Memory Card (Class10)	SDSDQX-016G-J35A	16GB
SanDisk	SanDisk Extreme® microSDHC™ UHS-I Memory Card (Class10)	SDSDQX-032G-J35A	32GB
SanDisk	SanDisk Extreme® microSDHC™ UHS-I Memory Card (Class10)	SDSDQX-064G-J35A	64GB
SanDisk	SanDisk Extreme® microSDHC™ UHS-I Memory Card (U3, Class10)	SDSDQXL-016G-J35A	16GB
SanDisk	SanDisk Extreme® microSDHC™ UHS-I Memory Card (U3, Class10)	SDSDQXL-032G-J35A	32GB
SanDisk	SanDisk Ultra® microSDHC™ UHS-I Memory Card (Class10)	SDSDQUL-008G-J35A	8GB
SanDisk	SanDisk Ultra® PLUS microSDHC™ UHS-I Memory Card (Class10)	SDSDQUP-008G-J35A	8GB
SanDisk	SanDisk Ultra® PLUS microSDHC™ UHS-I Memory Card (Class10)	SDSDQUP-016G-J35A	16GB
SONY	microSDHC™ UHS-I Memory Card (Class10)	SR-32UXA	32GB
SONY	microSDXC/microSDHC UHS-I Memory card	SR-8UY2A	8GB
