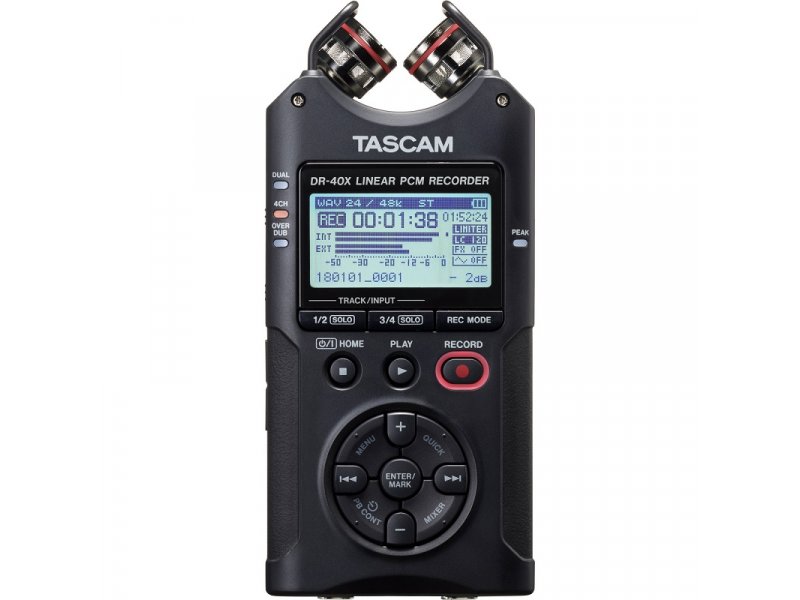

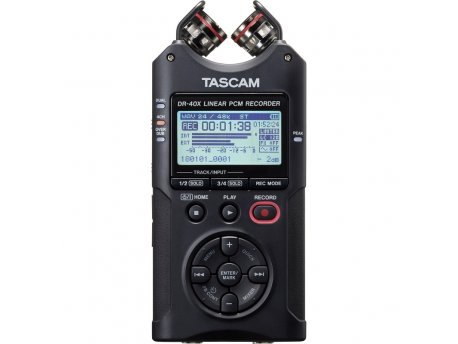

TASCAM DR-40X snimač nudi mogućnosti snimanja na četiri kanala u kompaktnom ručnom formatu. Odličan je izbor za DSLR video, muzičare, sound dizajnere, podcastere i druge kreativce kojima je potrebno jednostavno i kvalitetno rešenje za brzo usnimavanje zvuka. Par kondenzatorskih mikrofona može se podešavati već prema željenoj stereo tehnici A / B ili XY, a tu su još i dva XLR/TRS kombinirana ulaza za dodatne mikrofone ili izvore zvuka. DR-40X može čak poslužiti kao USB audio interfejs za snimanje direktno u vaš kompjuter. Kako god ga koristili, očekujte sjajan kvalitet zvuka i fleksibilnost povezivanja uz sigurnu pouzdanost pri radu.
Opis:
| Recording Media | SD card (64MB to 2GB), SDHC card (4GB to 32GB), SDXC card (up to 128GB) |
| File System | FAT16/32, exFAT |
| Recording File Format | |
| WAV / BWF | |
| Sampling Frequency | 44.1k / 48k / 96k Hz |
| Bit-depth | 16 / 24-bit |
| MP3 | |
| Sampling Frequency | 44.1k / 48k Hz |
| Recording Bit-rate | 32k / 64k / 96k / 128k / 192k / 256k / 320k bps |
| Playback Bit-rate | 32k to 320k bps, VBR, ID3TAG Ver. 2.4 |
| Number of Channels | 4-channel (2 Stereo) |
| Playback speed control | 0.5 to 1.5 times (in 0.1 increments) * 44.1k/48kHz only |
| Built-in Microphone | Unidirectional, Stereo (switchable between A-B and X-Y positions) |
| EXT MIC/LINE IN | |
| Connector | XLR/TRS Combo jack (1: GND, 2: HOT, 3: COLD) |
| Nominal Input Level | –19dBV (MIC) / +4dBu (LINE) |
| Maximum Input Level | –3dBV (MIC) / +20dBu (LINE) |
| Input Impedance | 2.2kΩ (MIC) / 10kΩ (LINE) |
| PHONES/LINE OUT | |
| Connector | 1/8" (3.5mm) Stereo Mini jack (Unbalanced) |
| for LINE connection | |
| Nominal Output Level | –14dBV (10kΩ load) |
| Maximum Output Level | +2dBV (10kΩ load) |
| Output Impedance | 12Ω |
| for Headphones connection | |
| Maximum Output Power | 20mW + 20mW (32Ω load) |
| USB | |
| Connector | USB Micro B-type |
| Format | USB2.0 HIGH SPEED |
| Built-in Speaker | 0.3W, Mono |
| Low-cut Filter | 40 / 80 / 120Hz |
| Chromatic Tuner | C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments) |
| Effector | 6 presets (Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2) |
| Tripod attachment screw-hole | 1/4" Tripod attachment screw-hole |
| Power | 3 AA Batteries, USB bus power, AC 100 to 240V (optional AC Adapter) |
| Power Consumption | 2.5 W (Max) |
| Battery Operation Time (Recording) | |
| Alkaline (EVOLTA) | approx. 18 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA) |
| Ni-MH (eneloop) | approx. 16 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA) |
| Dimensions (W×H×D) | 2.75" × 6.1" × 1.37" / 70 × 155 × 35 mm |
| Weight | 8.3 oz. / 213 g |
Audio performanse
| Frequency Response | |
| Fs 44.1kHz | 20Hz to 20kHz, +1/–3dB (EXT IN to LINE OUT, JEITA) |
| Fs 48kHz | 20Hz to 22kHz, +1/–3dB (EXT IN to LINE OUT, JEITA) |
| Fs 96kHz | 20Hz to 40kHz, +1/–3dB (EXT IN to LINE OUT, JEITA) |
| Total Harmonic Distortion | 0.05% or less (Fs 44.1k/48k/96kHz, EXT IN to LINE OUT, JEITA) |
| Signal-to-Noise Ratio | 92 dB or higher (Fs 44.1k/48k/96kHz, EXT IN to LINE OUT, JEITA) |
Platforma kompjutera:
| Windows | |
| Computer | Windows PC with USB2.0 or USB3.0 port |
| CPU | Dual Core, 2GHz or faster (x86) |
| Memory | 2GB or more |
| Macintosh | |
| CPU | Power PC, iMac, G3, G4, G5 266MHz or faster |
| Memory | 64MB or more |
| USB | USB2.0 recommended |
Podržani OS:
Windows
Windows 10 (April 2018 Update) , Windows 8.1 , Windows 7Mac
macOS Mojave New , macOS High Sierra (10.13) , macOS Sierra (10.12)iOS
iOS 12 New , iOS 11 *1: The performance of the media may be degraded significantly if it will be used repeatedly. ERASE FORMAT by DR-40X is recommended before use.
Podržani mediji:
| Maker | Series | Model | Capacity |
|---|---|---|---|
| SanDisk | Extreme Pro SD UHS-II card | SDSDXPK-032G-JNJIP New | 32GB |
| SanDisk | Extreme Pro SD UHS-II card | SDSDXPK-064G-JNJIP New | 64GB |
| SanDisk | Extreme SDXC™ UHS-I card (U3, Class10) | SDSDXVE-064G-JNJIP*1 | 64GB |
| SanDisk | Extreme SDXC™ UHS-I card (U3, Class10) | SDSDXVF-128G-JNJIP*1 | 128GB |
| SanDisk | Extreme® SDHC™ UHS-I Card (U3,Class10) | SDSDXNE-016G-JNJIP | 16GB |
| SanDisk | SanDisk Extreme Pro® SDHC™/ SDXC™ UHS-I Memory Card (U3, Class10) | SDSDXPA-016G-JU3 | 16GB |
| SanDisk | SanDisk Extreme Pro® SDHC™/ SDXC™ UHS-I Memory Card (U3, Class10) | SDSDXPA-064G-JU3 | 64GB |
| SanDisk | SanDisk Extreme® SDHC™/ SDXC™ UHS-I Memory Card (U3, Class10) | SDSDXL-032G-JU3 | 32GB |
| SanDisk | SanDisk Ultra® PLUS SDHC™ UHS-I Memory Card(Class10) | SDSDUM-016G-J01 | 16GB |
| SONY | SDHC UHS-I Memory Card | SF-8UY2 | 8Ｇ |
| TOSHIBA | EXCERIA PRO™ SDHC/SDXC Memory Card (SD-KU Series) | SD-KU016G | 16ＧB |
| TOSHIBA | EXCERIA PRO™ SDHC/SDXC Memory Card (SD-KU Series) | SD-KU032G*1 New | 32GB |
| TOSHIBA | EXCERIA PRO™ SDHC/SDXC Memory Card（SDXU-B Series） | SDXU-B064G | 64GB |
| TOSHIBA | EXCERIA™ SDHC/SDXC Memory Card（SD-FU Series） | SD-FU008G | 8GB |
| TOSHIBA | EXCERIA™ SDHC/SDXC Memory Card（SD-FU Series） | SD-FU016G | 16GB |
