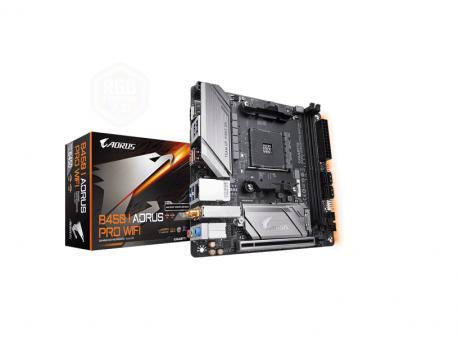

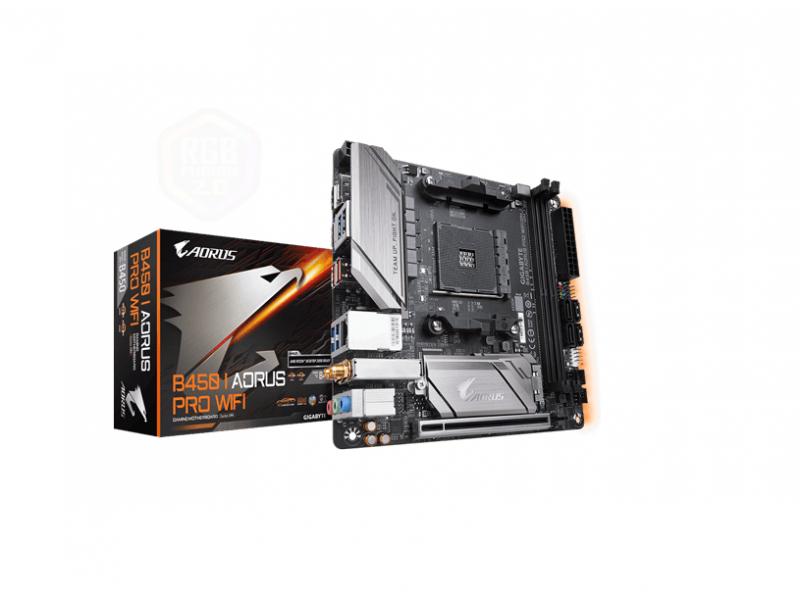

GIGABYTE AMD MB B450 I AORUS PRO WIFI AM4

Podnožje  AMD® AM4

Čipset AMD® B450

Tip procesora  AMD

Podržani procesori - AM4 Socket: Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors


Podržana memorija DDR4

Memorija - 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory - Dual channel memory architecture - Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules * ECC is only supported with AMD Ryzen™ and Athlon™ of PRO-series CPU. - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules



Integrisana grafička karta Integrated Graphics Processor: - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz - 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz


Slotovi za proširenje - 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) - 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)


Storage - 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors - Support for RAID 0, RAID 1, and RAID 10


Mrežna karta - Intel® GbE LAN chip (10/100/1000 Mbit) - Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5 - Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate


Zvučna karta - Realtek ALC1220-VB codec - High Definition Audio - 2/4/5.1/7.1-channel - Support for S/PDIF Out

USB Chipset: - 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.1 Gen 1 ports available through the internal USB header - 2 x USB 2.0/1.1 ports available through the internal USB header Integrated in the APU: - 4 x USB 3.1 Gen 1 ports on the back panel


Konektori na zadnjoj strani - 1 x DisplayPort - 2 x HDMI ports - 2 x USB 3.1 Gen 2 Type-A ports (red) - 4 x USB 3.1 Gen 1 ports - 1 x RJ-45 port - 2 x SMA antenna connectors (2T2R) - 3 x audio jacks


Interni konektori - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x CPU fan header - 1 x system fan header - 1 x digital LED strip header - 1 x CPU cooler LED strip/RGB LED strip header - 4 x SATA 6Gb/s connectors - 1 x M.2 Socket 3 connector - 1 x front panel header - 1 x front panel audio header - 1 x S/PDIF Out header - 1 x speaker header - 1 x USB 3.1 Gen 1 header - 1 x USB 2.0/1.1 header - 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) - 1 x Clear CMOS jumper - 1 x chassis intrusion header


Bios - 1 x 128 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Ostalo Support for APP Center 3D OSD AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install

Prava potrošača 36 meseci
