GIGABYTE AMD MB X570 UD 1.0 AM4

(0)

SKU:60393

Proizvod trenutno nije dostupan

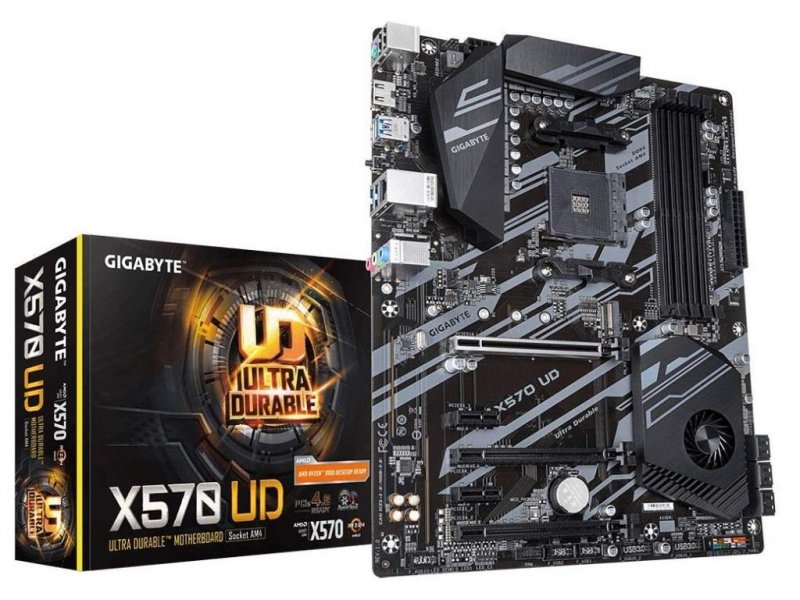

GIGABYTE AMD MB X570 UD 1.0 AM4 - slika 1

Pomoć u kući sa 88% popusta

Tip procesora	AMD
Podnožje	AMD® AM4
Čipset	AMD® X570
Format ploče	ATX
Podržani procesori	AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
Podržana memorija	DDR4
Memorija	- 3rd Generation AMD Ryzen™ processors: Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules - 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules - 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory - Dual channel memory architecture - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors. - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules
Multi-GPU podrška	- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies *For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.
Integrisana grafička karta	Integrated Graphics Processor: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.
Slotovi za proširenje	žIntegrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1) - 2 x PCI Express x16 slots, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4) For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0/3.0 For 3rd Generation AMD Ryzen™ processors only.
Storage	Integrated in the CPU: · 3rd Generation AMD Ryzen™ processors: - 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: - 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset: 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
Mrežna karta	Realtek® GbE LAN chip (10/100/1000 Mbit)
Zvučna karta	- Realtek® ALC887 codec - High Definition Audio - 2/4/5.1-channel
USB	Integrated in the CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 4 x USB 3.2 Gen 1 ports available through the internal USB headers - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Konektori na zadnjoj strani	- 1 x PS/2 keyboard/mouse port - 1 x HDMI port - 4 x USB 3.2 Gen 1 ports - 2 x USB 2.0/1.1 ports - 1 x Q-Flash Plus button - 1 x RJ-45 port - 3 x audio jacks
Interni konektori	- 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x CPU fan header - 1 x water cooling CPU fan header - 2 x system fan headers - 1 x RGB LED strip header - 6 x SATA 6Gb/s connectors - 1 x M.2 Socket 3 connector - 1 x front panel header - 1 x front panel audio header - 2 x USB 3.2 Gen 1 headers - 2 x USB 2.0/1.1 headers - 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) - 1 x Clear CMOS jumper
Bios	- x 128 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Ostalo	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Prava potrošača	36 meseci
EAN	4719331806743
