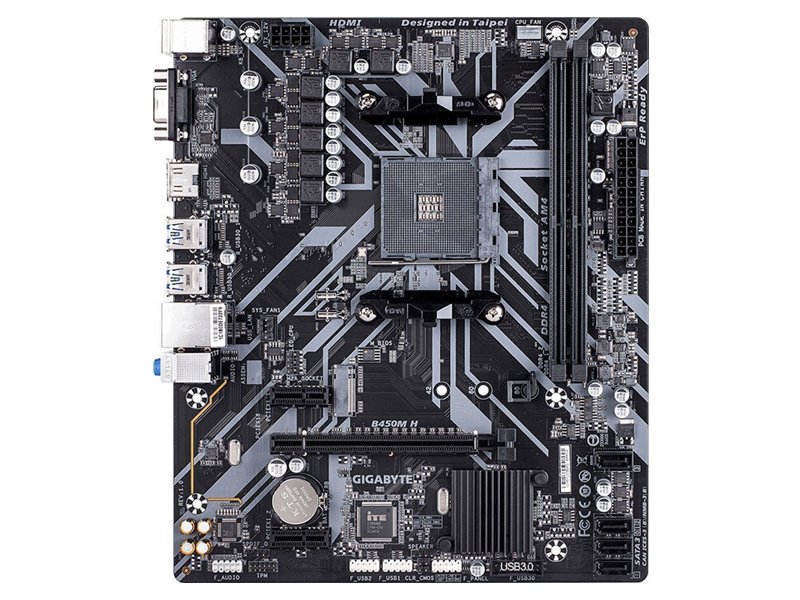

| Model | B450M H |
| Procesorsko podnožje (Socket) | AMD Socket AM4 |
| Skup čipova (Chipset) | AMD® B450 |
| Podrška za procesore | AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 1st Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ 1st Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors |
| Tip memorije (RAM) | DDR4 |
| Broj memorijskih slotova | 2x 288-Pin DDR4 |
| Podrška za memorije | 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Podrška za grafiku - portovi | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2.(Note) Maximum shared memory of 16 GB |
| Slotovi za proširenja | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) |
| M.2 portovi | 1x M.2 Socket 3 |
| Čuvanje podataka - portovi | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| U.2 portovi | nema |
| SATA Express portovi | nema |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Zvuk (Audio) | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| USB portovi | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |

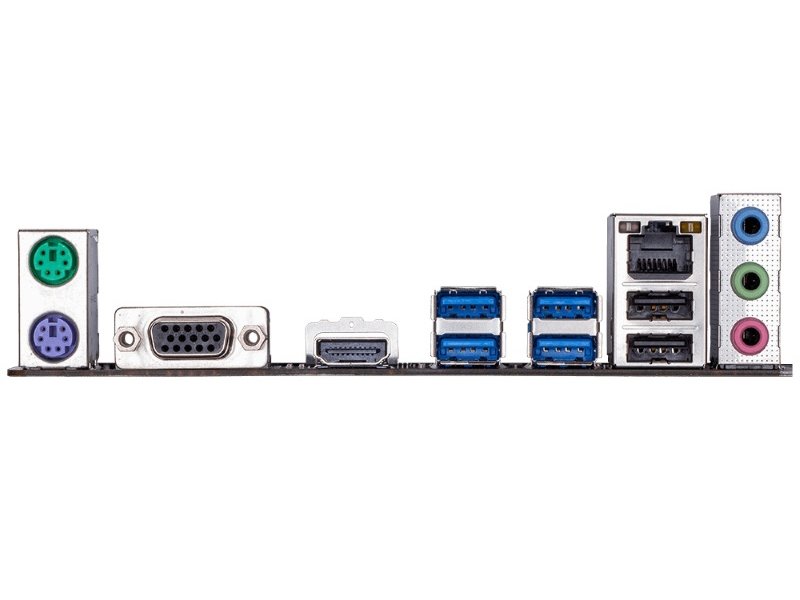

| Konektori na zadnjoj strani | 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
| Posebne mogućnosti | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install |
| Operativni sistem | Windows® 7; Windows® 10 |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | Micro ATX |
| Dodatna oprema | Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility |
Zagarantovana sva prava po Zakonu o zaštiti potrošača.
Tačan podatak o uvozniku i zemlji porekla je naveden na deklaraciji proizvoda.
Molimo Vas da nakon prijema porudžbine prekontrolišete sve proizvode da li eventualno imaju neka fizička oštećenja i u tom slučaju nam odmah, a najkasnije u roku od 24h, prijavite eventualna oštećenja nastala u transportu. Nakon tog roka necemo biti u mogućnosti da prihvatimo reklamaciju.
Posebno Vas molimo da veliku pažnju posvetite otpakivanju televizora jer tu najlakše dolazi do oštećenja. Za televizore većih dijagonala za raspakivanje i montažu su potrebne dve osobe.
Proizvode kojima iz bilo kog razloga niste zadovoljni možete vratiti u roku od 15 dana i dobiti novac nazad. Ovo se ne odnosi na proizvode koji aktivacijom gube na svojoj vrednosti.
Zakonska saobraznost : 2 godine
Sve detalje oko saobraznosti svakog proizvoda možete pronaći u samoj specifikaciji artikla.
Sve detalje oko saobraznosti svakog proizvoda možete pronaći u samoj specifikaciji artikla.
