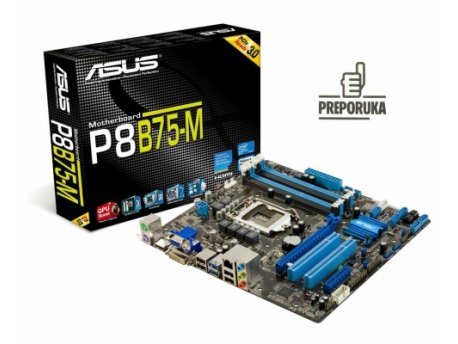

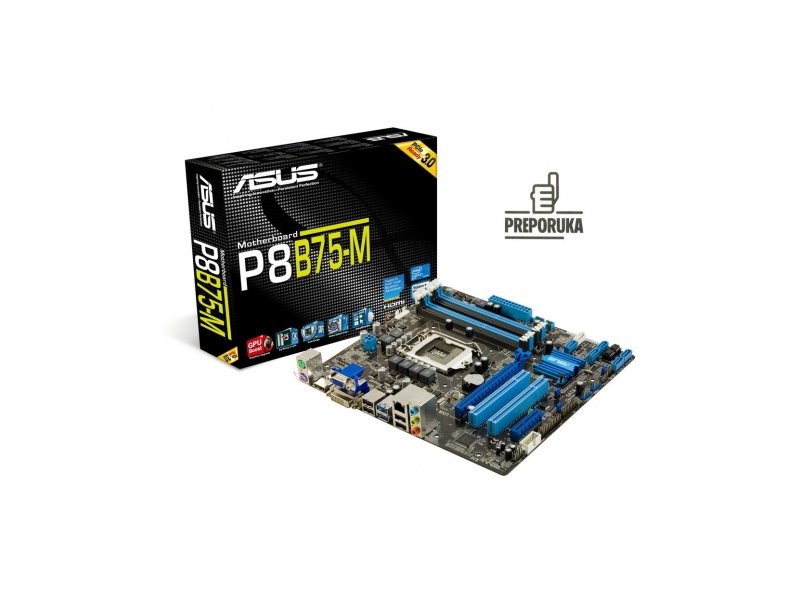

ASUS P8B75-M

CPU

• Chipset
  Intel® B75
• Memory
  4 x DIMM, Max. 32GB, DDR3 2200(O.C.)/2000(O.C.)/1800(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  * 1600MHz and higher frequency is supported by Intel® 3rd generation processors.
  * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated Graphics Processor
  Multi-VGA output support : HDMI/DVI/RGB ports
  - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
  - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
  Maximum shared memory of 1024 MB
• Multi-GPU Support
  Supports LucidLogix® Virtu™ MVP Technology *¹
• Expansion Slots
  1 x PCIe 3.0/2.0 x16
  1 x PCIe 2.0 x4
  2 x PCI
• Storage
  Intel® B75 chipset :
  5 x SATA 3Gb/s port(s), blue
  1 x SATA 6Gb/s port(s), gray
• LAN
  Realtek® 8111F-VB-CG, 1 x Gigabit LAN Controller(s)
• Audio
  VIA VT1708S 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function
• USB Ports
  Intel® B75 chipset :
  8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)
  Intel® B75 chipset :
  4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
• Special Features
  ASUS EPU :
  - EPU
  GPU Boost
  ASUS Exclusive Features :
  - MemOK!
  - AI Suite II
  - Ai Charger
  - Anti-Surge
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  - Network iControl
  - USB 3.0 Boost
  ASUS Quiet Thermal Solution :
  - ASUS Fan Xpert
  - ASUS Q-Fan 2
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 2
  - ASUS MyLogo 2
• Back I/O Ports
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.0
  4 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x TPM connector(s)
  1 x COM port(s) connector(s)
  1 x SATA 6Gb/s connector(s)
  5 x SATA 3Gb/s connector(s)
  1 x CPU Fan connector(s)
  2 x Chassis Fan connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x parallel port connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x Internal speaker connector(s)
  1 x System panel(s)
  1 x Chassis Intrusion connector(s)
  1 x MemOK! button(s)
• Accessories
  User's manual
  I/O Shield
  1 x SATA 3Gb/s cable(s)
  1 x SATA 6Gb/s cable(s)
• BIOS
  128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
• Manageability
  WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  ASUS Update
  Anti-virus software (OEM version)
• Form Factor
  uATX Form Factor
  9.6 inch x 8.9 inch ( 24.4 cm x 22.6 cm )
• Note
  *1: LucidLogix Virtu MVP supports Windows 7 operating systems.
  *2: Due to Intel® chipset limitation, P8Z77, P8H77 and P8B75 series motherboards do not support Windows® Vista operating system.
